PCCU Pneumatic (Air) Disc Clutch and Brake Combination Units (Integrated Type)

Soft-touch silicone, 3 colors!! ?英文

Categories: ,

🚀Product Description

NIIKA’s PCCU is an integrated design combining a clutch and brake into one unit. It utilizes pneumatic (air) actuation for engagement and spring applied for braking, featuring compact size, high torque, and agile and rapid response.

🚀Product Features

  • High-Performance Power Transmission: PCCU enables precise engagement and disengagement between the drive side and driven side, ensuring efficient and safe power transmission.
  • Versatile Applications: Suitable for various mechanical equipment such as automatic start, emergency stop, speed control, forward/reverse switching, workpiece movement, etc., ensuring high-precision operation.
  • Ideal for Metal Forming Processes: PCCU is particularly suitable for stamping, forging, pressing, shearing, and other heavy-duty metal forming machinery, ensuring stable operation over long periods.

🚀Product Specifications

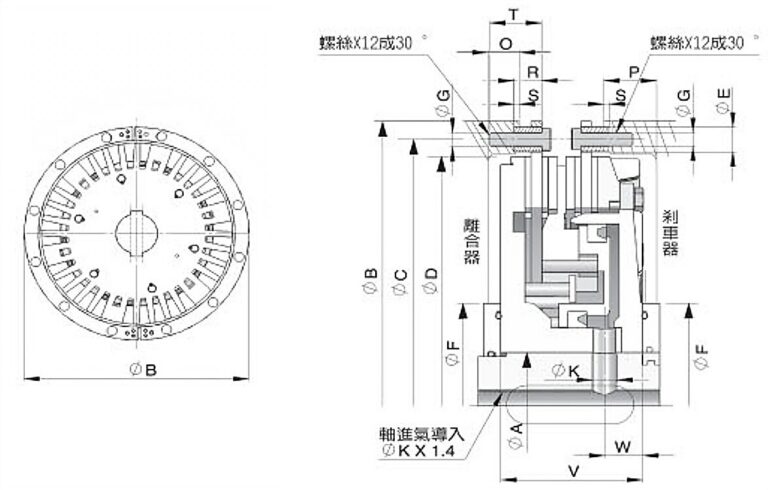

▌PCCU-TT

PCCU-TT 空壓離合器 / 剎車器 規格圖，顯示詳細尺寸與技術參數，適用於高扭矩傳動與工業剎車應用。

▌PCCU-SS

PCCU-SS 空壓離合器 / 剎車器 規格圖，顯示詳細尺寸與技術參數，適用於高扭矩工業傳動與制動應用。

▌PCCU-SL

PCCU-SL 空壓離合器 / 剎車器 規格圖，顯示完整技術尺寸與扭矩數據，適用於高精度工業傳動與自動化設備。

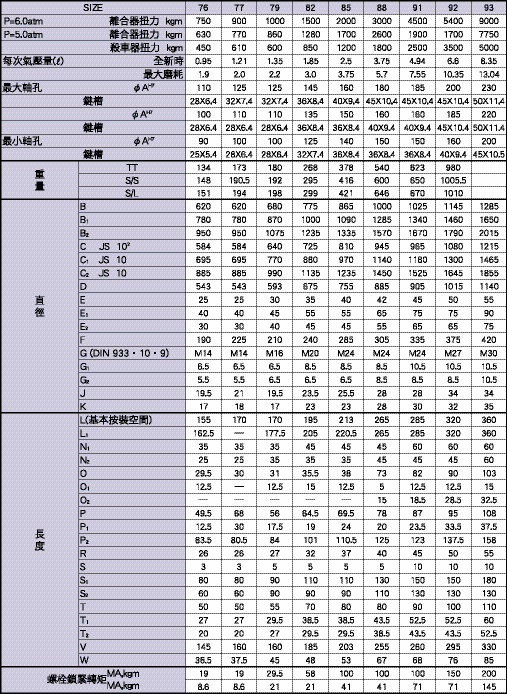

PCCU-specifications-for-different-size (Model)

⚠️Precautions for Use

1. Prohibition of Lubricating Oil and High Humidity Environment

        • PCCU pneumatic (air) clutch and brake combination units are designed for dry operation only. It is strictly forbidden to use any oil or lubricant on the friction surface or operate in high humidity or high oil mist environments for extended periods. Otherwise, it may cause slippage of the friction surface, reduce transmission efficiency, and even lead to abnormal mechanical operation or damage.

2. Working Pressure

        • The normal working pressure is 5 atm (0.5 MPa), and the maximum allowable pressure is 6 atm (0.6 MPa).
        • Exceeding the maximum allowable pressure may cause cylinder deformation or rupture, compromising system safety.

3. Brake Pad (brake linings, friction pads, brake blocks) Replacement

        • Do not use non-NIIKA original factory-specified brake pads (brake linings, friction pads, brake blocks), as it may cause:
          • Decreased transmission efficiency
          • Abnormal mechanical operation
          • Mechanical damage
