PIMO/W Adjustable Sliding Safety Chuck
- Also known as a manual sliding chuck.
Product Description
The PIMO / PIMW adjustable safety chuck is a manually operated sliding chuck designed for industrial equipment. It provides efficient, secure roll positioning and adjustment. The chuck offers 50 mm of total axial travel, allowing ±25 mm of adjustment in either direction. Its straightforward manual operation requires minimal training, helping reduce operating costs while maintaining production flexibility.
Product Specifications

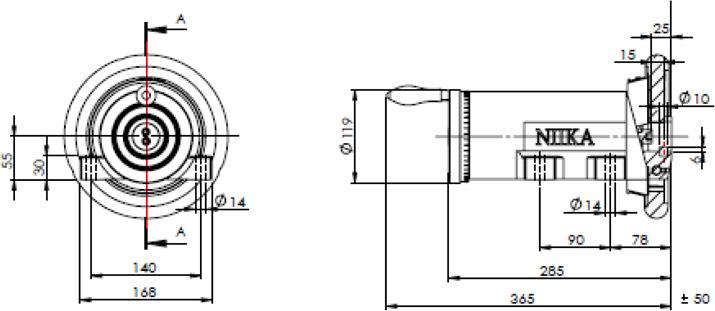

▌PIMO 50

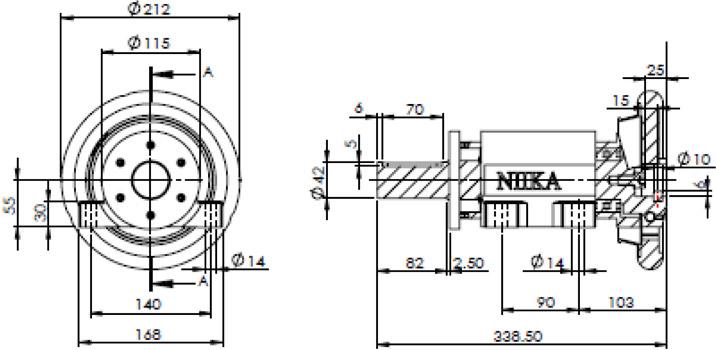

▌PIMW 50
| Model | PIM/O 50 |
|---|---|
| Maximum Load Capacity (kg) | 1400 |
| Maximum Torque Capacity (kgfm) | 30 |
| Square Socket Size (mm) | 32 38 40 |
| Shaft Diameter (mm) | 42 |
| Weight (kg) | 23.5 |
